Связь совместимой мини женской аттестации КЭ соединителя полумесяца эффективная

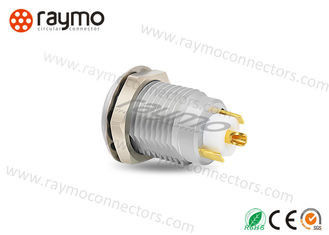

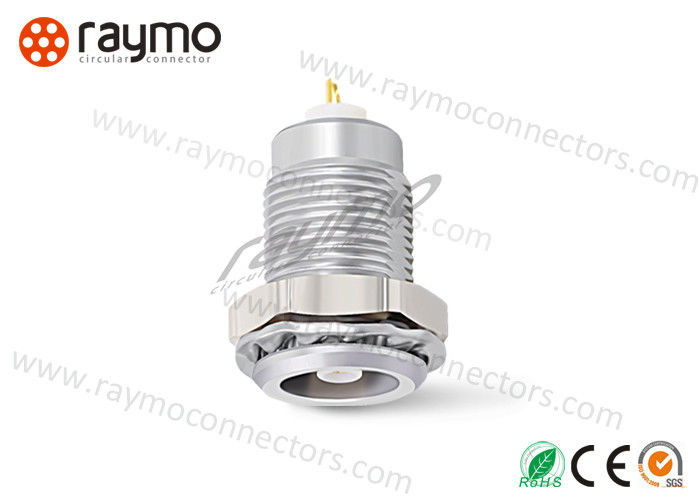

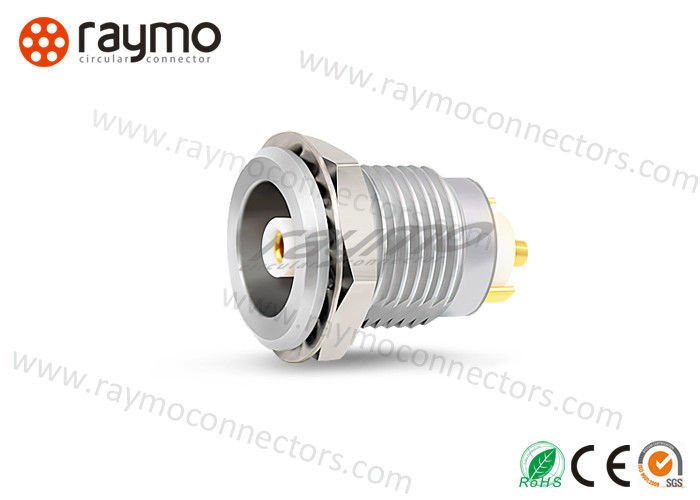

ERA.00.250.CLL RAYMO 00 Series Mini Female Socket 00 Coaxial Femlae Connector

• SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
• This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military defence.

• OEM / ODEM
• 7*24HOURS
• SMALL ORDER
• FREE SAMPELS
• FAST DELIVERY
• CABLE ASSEBLY.
• CE ROHS2.0 CERTIFIFIED

• Compatible with LEMO S ERA PANEL mount socket
• Panle PCB connector Circular push pull connectors

• 00S 50OHM Coaxial connector

• Straight PCB, solder and elbow PCB contacts are available too

• Shell Style/Model:ERA: Fixed receptacle, nut fixing
• Keying:Circular (can rotate)
• Housing Material:Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
• Configuration:0.25 : 1 Coax (50 Ohm)
• Rated Current :4 Amps
• Contact Type: Coaxial 50 Ohm (Solder)
• Max. Matings: 5000
• Contact Dia.: 0.7 mm (0.028in)
• Bucket Dia.: 0.6 mm (0.024in)
• Test voltage: 2.1 kV (rms)
• R (max): 6.1 mOhm
• Vtest: 2100 V (AC), 3000 V (DC)
• Impedance: 50 Ohm
• VSWR: 1.09 + 0.11 * f/GHz

1.  Medical
2. Test & measurement
3. Transport
4. Defense & Security
5. Broadcast
6. Energy
